Demystifying I/O Timing Constraints

I/O timing constraints can be daunting, even for experienced FPGA designers. A common misconception is that these constraints somehow fix skewed input signals. They don’t. While synthesis and implementation tools can tolerate some signal misalignment, constraints are always required to determine whether your design will function correctly, as-is. If precise alignment is necessary, it must be handled manually using inserted primitives such as an IODELAY.



How Are I/O Timing Constraints Used?

I/O timing constraints communicate timing relationships between the FPGA and external devices, ensuring signals are captured and transmitted reliably. To define these constraints, you’ll typically need to refer to external component datasheets and understand your board’s physical characteristics.

Some designs might function without properly defined I/O timing constraints—often due to luck or overly conservative assumptions. But this is a fragile approach. Process variations, temperature shifts, and voltage fluctuations can all break a design that’s skating by without constraints. If reliability matters, defining accurate I/O timing is essential.



The Core Concepts Behind I/O Timing Constraints

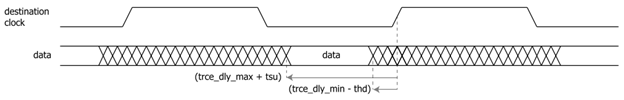

The basic concepts are straightforward. For each signal crossing the FPGA boundary, constraints define a valid data window: the time during which a signal can be safely sampled or launched.

Input Constraints

• set_input_delay -max: Maximum time from the clock edge to valid data
• set_input_delay -min: Minimum time from the clock edge to valid data
  Valid data window = Period – (Inmax – Inmin)

Output Constraints

• set_output_delay -max: Setup time from clock edge to valid data at the receiving device
• set_output_delay -min: Hold time from clock edge to valid data at the receiving device
  Valid data window = Outmax – Outmin

Vendor-Specific I/O Timing Constraints Practices

AMD (Xilinx)

The AMD Vivado Design Suite utilizes Xilinx Design Constraints (XDC) files, which are based on the Synopsys Design Constraints (SDC) format. Key considerations include:

• I/O Planning: Vivado’s I/O Planning view allows designers to assign and validate I/O ports, ensuring compatibility with I/O standards and voltage requirements.
• Timing Constraints: Use set_input_delay and set_output_delay to specify external delays. For example:

TCL

set_input_delay -clock clk -max 5.0 [get_ports data_in]
set_output_delay -clock clk -max 3.0 [get_ports data_out]

• I/O Delay Elements: AMD (Xilinx) FPGAs offer programmable I/O delay elements (e.g., IDELAY and ODELAY) to fine-tune timing.
• Timing Exceptions: Commands like set_false_path and set_multicycle_path help manage complex timing scenarios.

Altera

Altera’s (Intel’s) Quartus Prime software also supports SDC-based constraints. Key aspects include:

• Timing Analyzer: This tool provides detailed reports on timing paths, highlighting any violations.
• Constraint Application: Use set_input_delay and set_output_delay to define timing relationships. For instance:

TCL
set_input_delay -clock clk -max 6.0 [get_ports data_in]
set_output_delay -clock clk -max 4.0 [get_ports data_out]

• Report Generation: The report_timing command generates comprehensive timing analysis reports.

Lattice Semiconductor

Lattice’s Radiant and Diamond design tools cater to their FPGA families. Notable features include:

• Programmable Delay Elements: Devices like the MachXO2 incorporate programmable delay cells to adjust input timing, aiding in meeting hold time requirements.
• Constraint Specification: Similar to other vendors, use set_input_delay and set_output_delay to define timing constraints.
• Timing Closure: Lattice emphasizes the importance of accurate constraints for achieving timing closure, especially when interfacing with high-speed peripherals.

Microchip

Microchip’s Libero SoC Design Suite provides a graphical interface for constraint management. Key points include:

• Constraint Dialogs: Users can specify input and output delays through dedicated dialog boxes, entering maximum and minimum values based on external timing budgets.
• Constraint Application: While the interface is GUI-based, the underlying principles align with SDC practices, ensuring consistency in timing analysis.

Clock Uncertainty and Jitter with I/O Timing Constraints

I/O timing constraints assume an ideal clock edge, but real clocks are rarely perfect. Clock uncertainty accounts for jitter, phase noise, skew, and margin needed for safe operation.

In Vivado, Quartus, and other tools, you can specify for example 200ps of uncertainty with this command:

TCL
set_clock_uncertainty 0.2 [get_clocks clk]

This reduces the valid data window by subtracting uncertainty from both setup and hold margins. It’s especially important when interfacing with high-speed devices or using external clocks that may not be phase-aligned with internal clocks.

For best results:

• Refer to the jitter specifications in your clock source’s datasheet.
• Consider trace length mismatches between clock and data lines.
• For system-synchronous designs, budget for both source and destination clock uncertainty.



Multicycle and False Path Constraints

Not all timing paths are evaluated every cycle. Sometimes, data is allowed to arrive over multiple cycles (e.g., in handshake protocols), or the timing path isn’t relevant at all (e.g., asynchronous control signals). You need to tell the tool:

• Multicycle Paths:
  • set_multicycle_path 2 -setup -from [get_ports data_in] -to [get_registers *]

This tells the tool that the signal only needs to be valid every 2 clock cycles.

• False Paths:
  • set_false_path -from [get_ports async_flag]

This disables timing checks on paths where setup/hold analysis doesn’t apply.

Misusing or omitting these can either lead to unnecessary constraint violations or missed timing violations.



Conclusion

I/O timing constraints are pivotal for ensuring reliable FPGA operation, especially when interfacing with external components. While the fundamental principles remain consistent across vendors, each offers unique tools and features to aid in constraint specification and timing analysis. By understanding and leveraging these vendor-specific practices, designers can achieve robust and reliable FPGA designs.
